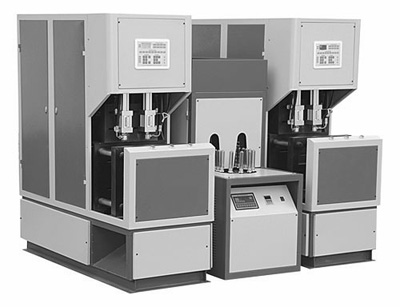

JWM(PET)-2L Economical Bottle Blowing Machine
|
Max.Blowing Volume |
≤2L |
|
Max.Productive Capacity |
2L(1600-1800p/h) |
|
Mould-clamping Pressure |
8-10kg |
|
Air Pressure |
7-25kg |
|
Max.Mould Size |
180-110x320x330mm |
|
Max.Mould Opening Stroke |
220mm |
|
Max Caliber |
22.5mm |
|
Central Distance Between Two Moulds |
110-165mm |
|
Max Preform Length |
150mm |
|
Max Preform Heating Speed |
1800pcs/h |
|
Power |
10kw |
|
Power Supply |
3 Phase, 4 Wires |
|
Light Tubes |
Dinm：14mm Power：800w Length：45mm |
|
Rotating Motor |
75w Frequence Transformer |
|
Size |
Main frame control box：1500X600X1600cm Infra red oven：1760X650X1450cm |
|
Weight |
Main frame control box：2x450kg Infra red oven：168kg |
|
|
|
|
|
